Paquete de 8 kits LED de paisaje de bajo voltaje, kits de luces de inundación de camino de 12 V, 10 W 390 lm y 3,4 W 155 lm con cable para césped al aire libre, aluminio fundido, 50 W y 30 W equivalente a 15 años de vida útil

Hykolity LED Landscape Light is designed to take your backyard from basic to bling.

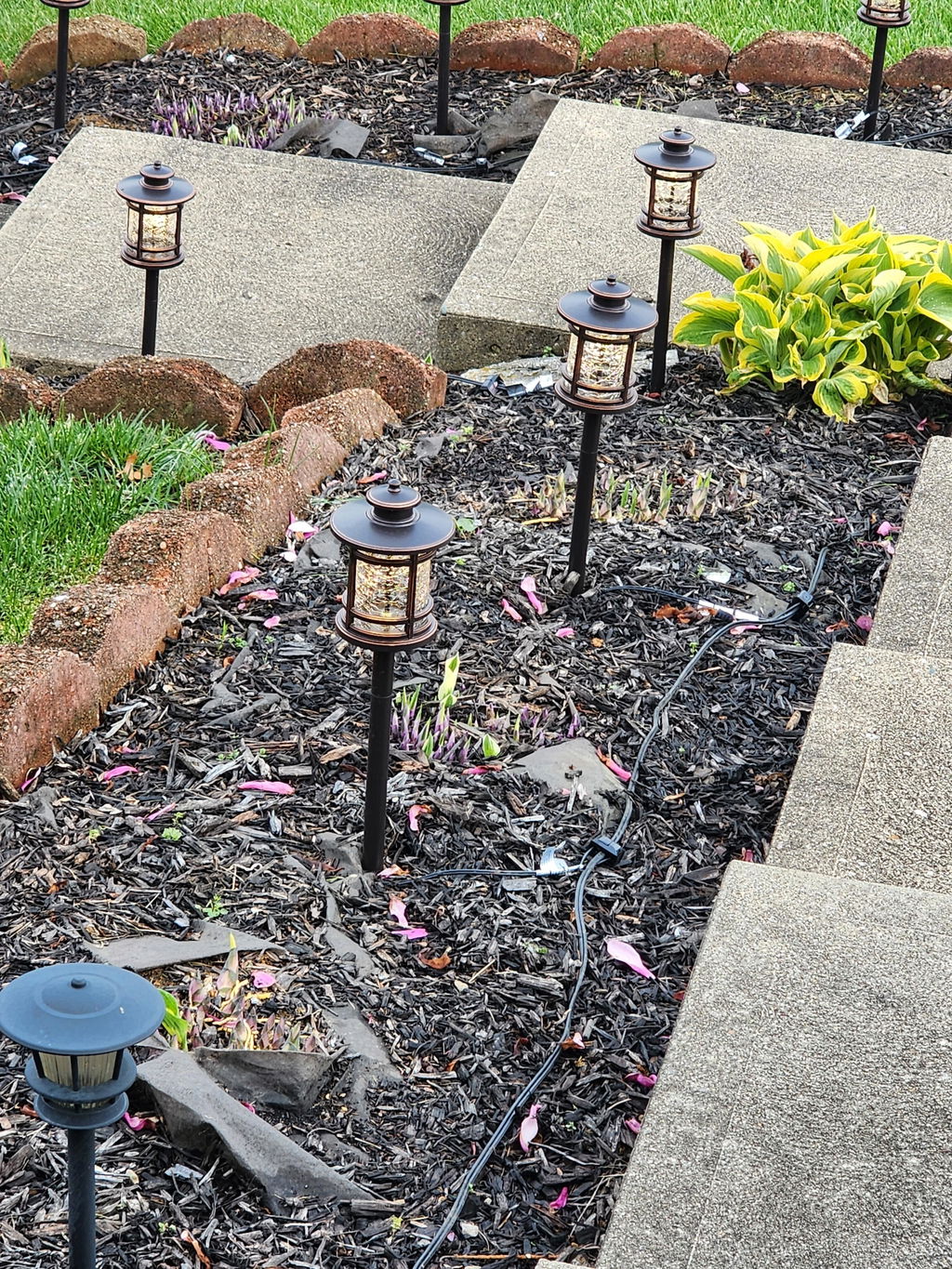

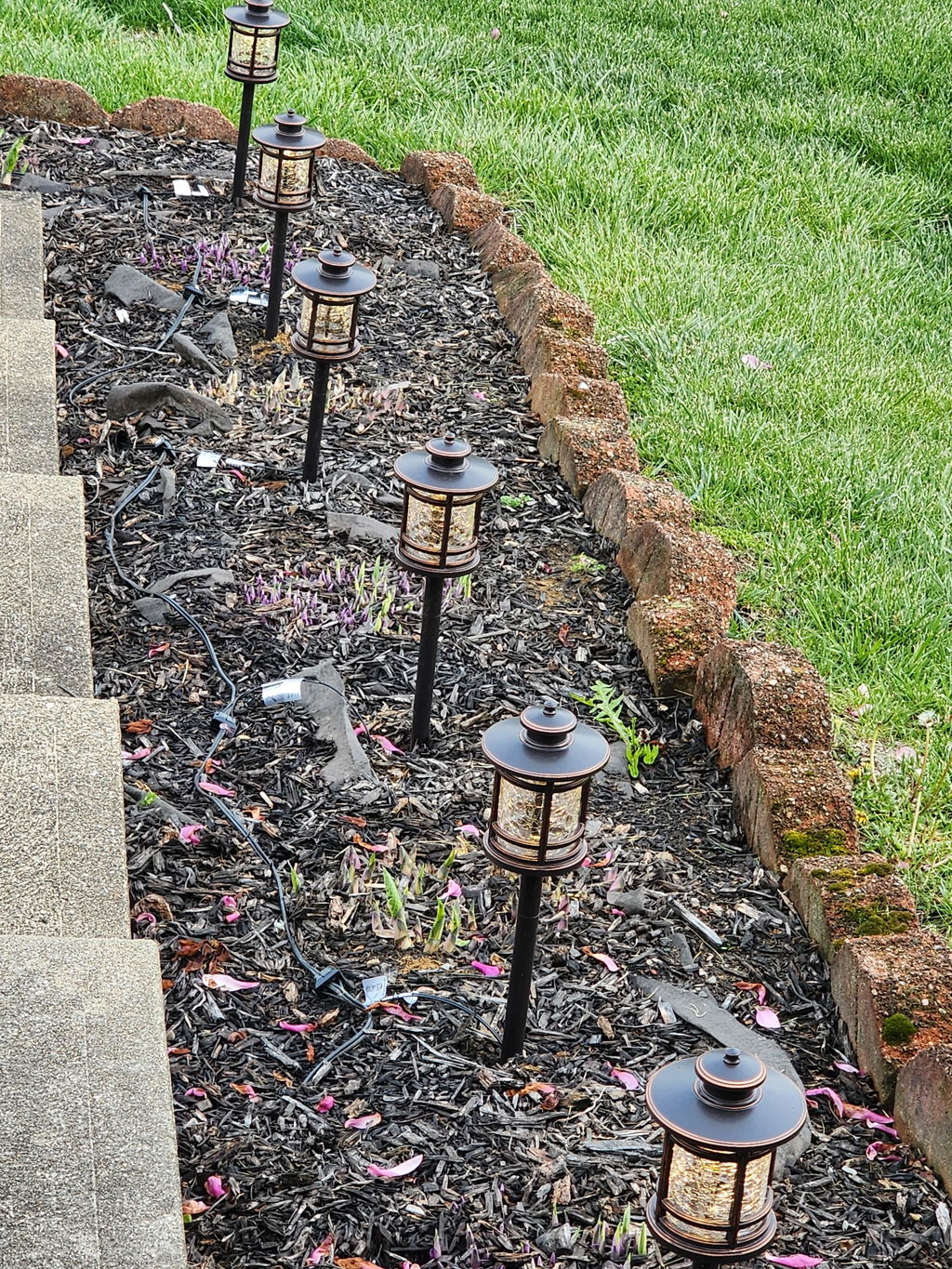

These LED landscape lighting kits include six Low Voltage Path Lights and two Low Voltage Flood Lights.

3W path light draws with 50LM/W efficacy compared to 30W incandescent light, 4.5W LED landscape flood light draws with 45.55LM/W efficacy compared to 30W INCANDESCENT light to completely illuminate Paths, Walkways, Stairs, Patios, Gardens, Shrubs, Trees and Plants.

These landscape lighting kits use integrated LEDs, which can run up to 23 years at 6 hours/day and reduce replacement frequency.

What kind of power cable and transformer should I need?
e.g Suppose there is a set of 4 path lights (each 3W) and 2 flood lights (each 4.5W) that need to be installed in the garden, How to choose the cable and the transformer?
 1. Add the individual light fixture wattages for all lights. 4*3W+2*4.5W=21W
 2. The typical distance between two lights is 6-8 feet, but closer or farther is ok too. Based on the above diagram, 6 lights total watts in 0-60 should choose 75-100ft 16AWG power cable.
 3. Transformer is large enough to support the Total Fixture Wattage, it should be the best usage within 80 percent of the rated capacity. So in this case a 45W transformer is enough.
Note: A transformer that is too large for the load may overdrive the lamps which will shorten their life spans.
